High Efficient Automatic Hydraulic Raise Drilling Machine 2000mm Diameter

Product Categories
Shandong Beijun Heavy Industry Co., Ltd.
Contact Now

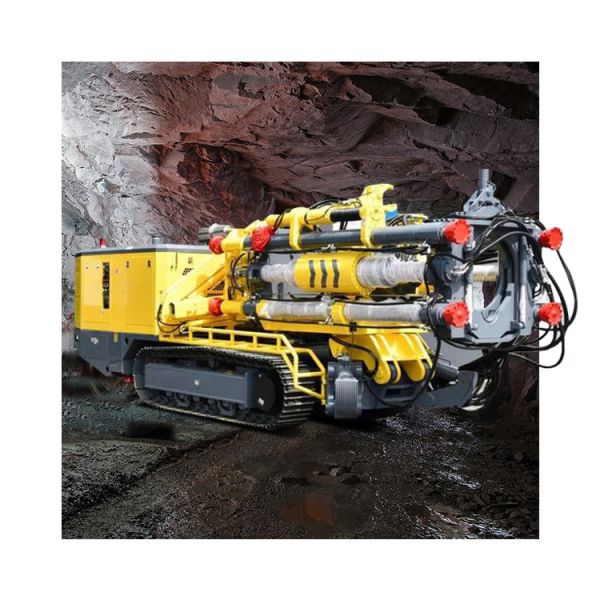

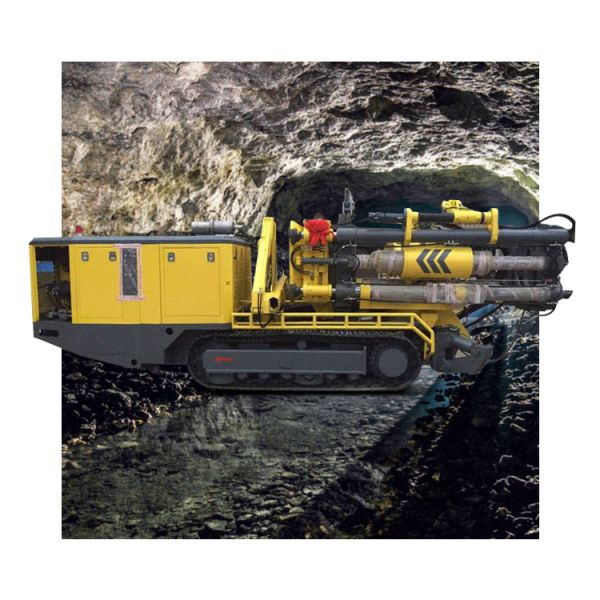

High Efficient Automatic Hydraulic Raise Drilling Machine 2000mm Diameter

Brand Name : Beijun

Model Number : CY-R80

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : USD 280000-300001 Set

Payment Terms : L/C, T/T

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 12 days

Packaging Details : Customized packaging

nominal raise diameter : 1999mm

maximum raise diameter : 2499mm

2nd raise diameter : 3502mm

maximum raise depth : 309m

pilot hole : 239°

drill angle from horizontal : 60~90mm

Contact Now

Efficient automatic hydraulic lifting drill

Function Characteristics

Besides their high performance and operational safety they are distinguished by their reliability and long service life. Their design allows quick installation of spare parts and flexible adjustments of their performance: all rig types have a powerful and highly efficient center-free drive. Multiple identical motor gear units are arranged around the center of the drive, so that even if one of the motors fails, work can continue with reduced power without interruption. This drive system also allows additional equipping with more motors. For example, a standard RBR600VF can subsequently have an additional 4th motor retrofitted. The total drive power and the available torque are consequenctly increased so that the rig can be used for larger shafts and drill rod diameters.

Performance Parameter

unite CY-R80 CY-R120 CY-R 120D
operation nominal raise diameter mm 2000 3000 3000
maximum raise diameter mm 2500 3500 3500
2nd raise diameter mm 3500 4500 4500
maximum raise depth m 400 200 400
pilot hole ° 241 280 280
drill angle from horizontal mm 60~90 60~90 60~90
propulsion feed force kN 1017@35MPa 1940@35MPa 2528@35MPa
lifting force kN 2425@35MPa 1940@35MPa 4310@35MPa
feed distance mm 1 450 1455 1440
rotation nomianl torque kN.m 82 168 168
peak torque kN.m 94 192 192
rotation speed r/min 0~30 0~24 0~24
power volfage V standard: 380 (optional: 660/1000/1 140)
motor power kW 90 132 132

High Efficient Automatic Hydraulic Raise Drilling Machine 2000mm DiameterHigh Efficient Automatic Hydraulic Raise Drilling Machine 2000mm DiameterHigh Efficient Automatic Hydraulic Raise Drilling Machine 2000mm DiameterHigh Efficient Automatic Hydraulic Raise Drilling Machine 2000mm DiameterHigh Efficient Automatic Hydraulic Raise Drilling Machine 2000mm DiameterHigh Efficient Automatic Hydraulic Raise Drilling Machine 2000mm DiameterHigh Efficient Automatic Hydraulic Raise Drilling Machine 2000mm Diameter
